Spring-MVCで画面を表示させるところまでを勉強したのでまとめます。
Spring3入門の6章の前半をまとめた感じです。
Spring tool suiteのインストール
http://www.springsource.org/downloads/sts-ggts
からインストーラをダウンロードする。
今回使用したのはlinuxの64bit版
spring-tool-suite-3.2.0.RELEASE-e3.8.2-linux-gtk-x86_64-installer.sh

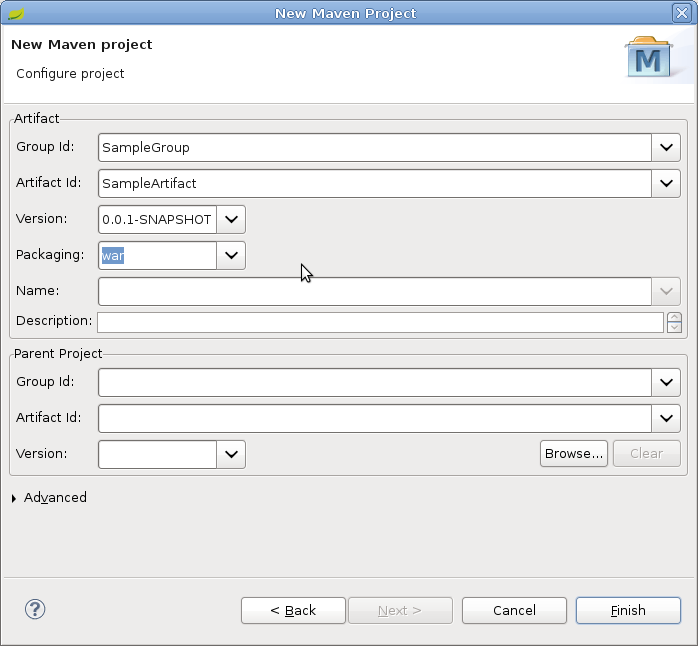

Mavenプロジェクトを作成する
[File] > [New] > [Project]
[Maven] > [Maven Project] を選択
[Create a simple project(skip archetype selection)にチェックを付ける
以下の内容を入力する
Group Id: SampleGroup Artifact Id: SampleArtifact Packaging: war
これで空のプロジェクトが作成された。
web.xmlを作成する
作成するWebアプリケーションの基本的な設定を記述するためのweb.xmlを作成する。
src/main/webapp/WEB-INF/フォルダを作成し、そこに新たにweb.xmlというファイルを作成する。
<?xml version="1.0" encoding="UTF-8"?> <web-app version="2.5" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"> <!-- Webコンテナ上にDIコンテナを配置する設定...と書いてあった --> <context-param> <param-name>contextConfigLocation</param-name> <param-value> classpath:/META-INF/spring/beans-biz.xml </param-value> </context-param> <listener> <listener-class> org.springframework.web.context.ContextLoaderListener </listener-class> </listener> <!-- DispatcherServletの定義 --> <servlet> <servlet-name>dispatcherServlet</servlet-name> <servlet-class> org.springframework.web.servlet.DispatcherServlet </servlet-class> <init-param> <param-name>contextConfigLocation</param-name> <param-value> classpath:/META-INF/spring/beans-webmvc.xml <!-- ViewResolverなどの設定 --> </param-value> </init-param> </servlet> <!-- Mappingの設定 すべてのアクセスをDispatcherServletに渡してDispatcherServlet側で処理してもらう --> <servlet-mapping> <servlet-name>dispatcherServlet</servlet-name> <url-pattern>/</url-pattern> </servlet-mapping> </web-app>
beans-webmvc.xmlを作成する
src/main/resources/META-INF/spring/beans-webmvc.xml
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xmlns:mvc="http://www.springframework.org/schema/mvc" xsi:schemaLocation=" http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-3.1.xsd"> <!-- リクエストが来た際、このパッケージ内の@Controllerクラスの中から呼び出し先を探す --> <context:component-scan base-package="sample.controller" /> <!-- @Controllerアノテーションを有効にするために必要 --> <mvc:annotation-driven/> <!-- /WEB-INF/resources/以下のファイルをデプロイする --> <mvc:resources location="/WEB-INF/resources/" mapping="/resources/**"/> <!-- ViewResolverの設定 --> <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver"> <property name="prefix" value="/WEB-INF/views/"/> <property name="suffix" value=".jsp"/> </bean> </beans>
beans-biz.xmlを作成する
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation=" http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd"> </beans>
spring-webmvcを追加する
pom.xmlを開く
Dependenciesタブを開く
[Dependencies]の[Add...]ボタンをクリック(左側のやつだよ)
以下の内容を入力する
Group Id: org.springframework Artifact Id: spring-webmvc Version: 3.1.1.RELEASE Scope: compile
コントローラクラスを作成する
コントローラは、ブラウザからのリクエストを受け取り、適切な処理(DBからデータを引っ張ってきて加工するとかそういう処理)をして、必要なデータをまとめてViewに渡す役割
SpringMVCの場合、あらかじめアノテーションしておくことでURIとHTTPメソッドからDispatcherServletが呼び出すべきメソッドを指定する
package sample.controller; import org.springframework.stereotype.Controller; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RequestMethod; @Controller public class SampleController { @RequestMapping(value="/sample", method=RequestMethod.GET) public String sample() { return "sample-view"; } }
jspを作成する
src/main/webapp/WEB-INF/views/
内にsample-view.jspを作成する。
今回はJSPの説明が目的ではなくて、とりあえずページが表示出来ればそれでいいので内容は以下にしておく。
Hello, Spring-MVC!
以上で作業は完了。
[Run As...] > [Maven build]
して、http://localhost:8080/SampleArtifact/sample にアクセスすると
"Hello, Spring-MVC!"って表示されるはず。
終わりに
XMLの設定が色々あってわかりにくかったので、最低限なにが必要でそれらはなにをしているのかを知るために行った作業のログです。
